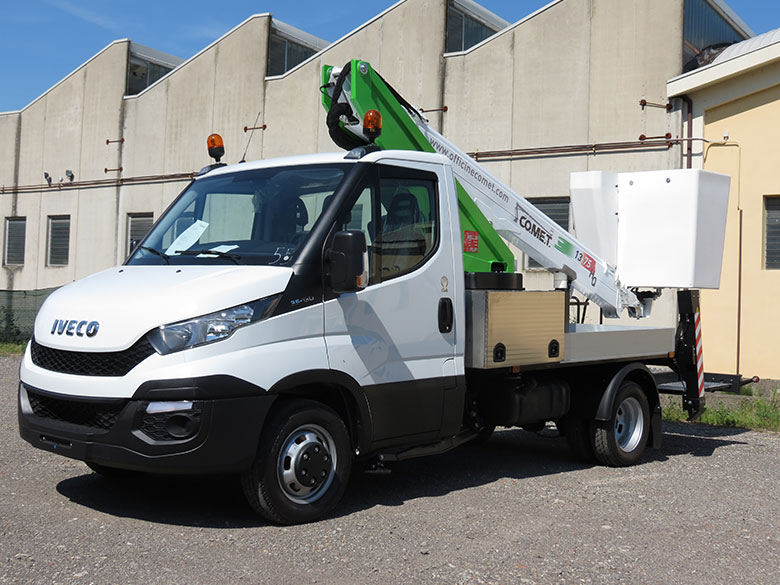

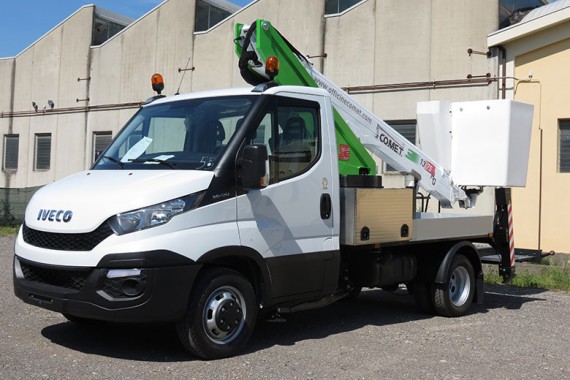

Thang nâng người 12m COMET

13 | 2 | 7.5 HQ - IN SHAPE



  • Max Working height 12.5 m
  • Max Lateral outreach 7.5 m
  • Basket floor 10.5 m
  • Capacity 200 Kg – 2 operators
  • Standard aluminium basket: 1400x700x1100 mm
  • Hydraulic basket rotation 90°+90°
  • Stabilisation: n° 4 hydraulic in shape outriggers
  • Rotation: 360° continuous
  • Controls: 100% hydraulic in low pressure
  • Minimum GVW: 3.5 tons
Lượt xem : 1781
DESCRIPTION
  • Aerial platform made of high strength steel for boom maximum rigidityand maximum safety while working.
  • The telescopic boom is made of 2 elements (1 telescopic extension). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc.
  • 100% hydraulic controls
  • Controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements, and long-lasting life to the platform with maintenance costs reduced at minimum.
  • No need of any device to limit lateral outreach (100% SAFE)
  • Constant and gradual automatic leveling of the basket with independent hydraulic circuit
  • All safety devices are active type
  • Electric power tap 230 V in basket
  • Engine start & stop from the basket
  • Closed outriggers warning light for driving safely
  • Hour-counter in the cabin
  • Aluminium basket. Also available the fiberglass basket insulated against accidental contacts with electrical power lines

PRODUCT SHEET

Aerial Platform Comet - New Eurosfilo HQ - 13 | 2 | 7.5 HQ-IN-SHAPEAerial Platform Comet - New Eurosfilo HQ - 13 | 2 | 7.5 HQ-IN-SHAPE
